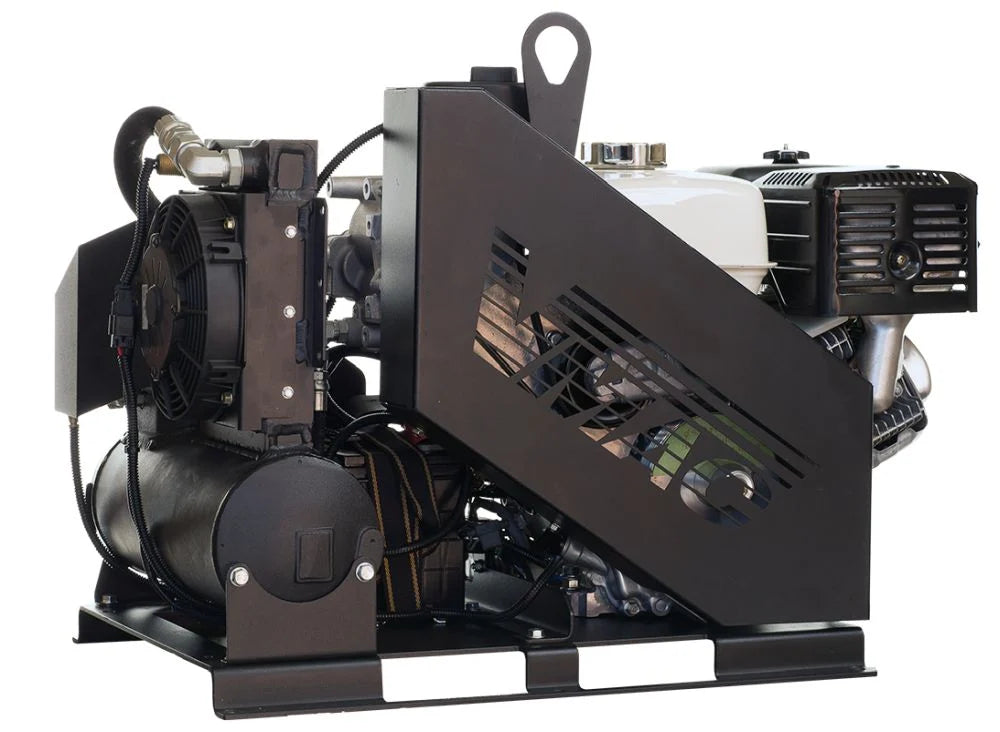

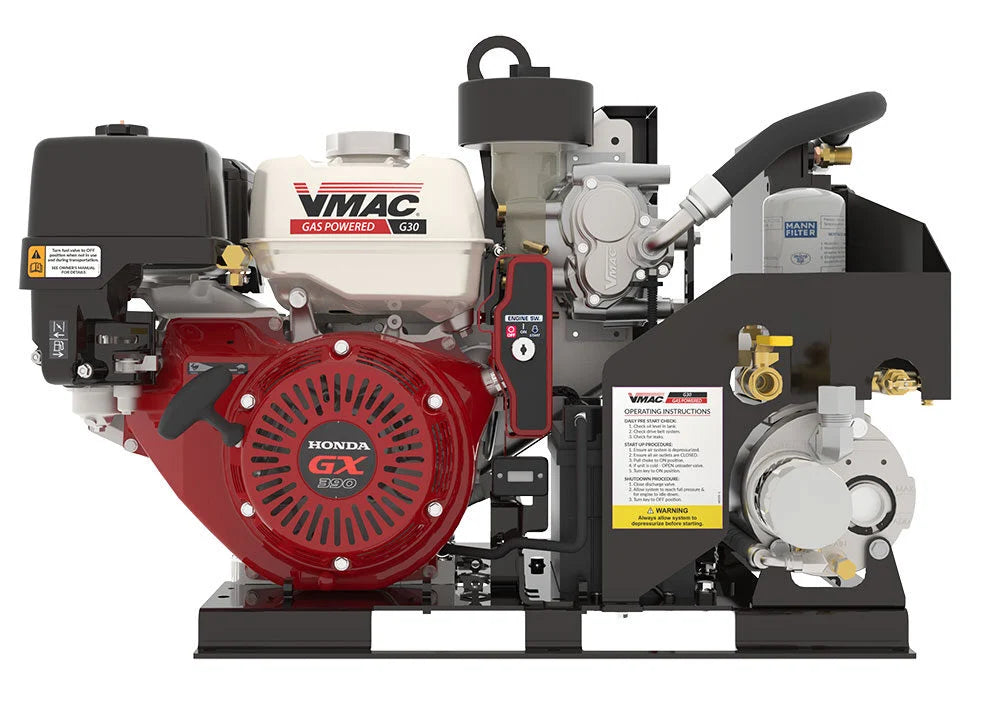

VMAC G30 ROTARY SCREW AIR COMPRESSOR 30 CFM HONDA POWERED
Couldn't load pickup availability
This unit we have in stock now is setup with remote start & cold weather climate kit
SPECS
Air Compressor Output 30 CFM @ 100 psi (150 psi max)
Air Compressor Type Belt-driven, 100% duty cycle, VMAC oil-injected rotary screw
Engine Honda GX390 air cooled 4-stroke OHV with electric start, EPA certified, Honda approved application
Weight (wet) Approx. 205 lb (93 kg) Approx. 210 lb (95 kg)
Dimensions 33.5” (l) x 21.4” (w) x 23.9” (h); 85.1 cm (l) x 54.4
cm (w) x 60.7 cm (h)
Mounting Plate:
25.0” (l) x 19.125” (w) / 63.5 cm (l) x 48.6 cm (w)
20” (l) x 18” (w) x 38” (h); 50.8 cm (l) x 45.7 cm (w)
x 96.5 cm (h)
Mounting Plate:
16.75” (l) x 10.75” (w) / 42.5 cm (l) x 27.3 cm (w)
Throttle Control 2-speed throttle, responds to air demand
Battery (included) ACDelco 12V, 300 CCA, 360 CA ACDelco 12V, 460 CCA, 575 CA
Control System Key switch, choke, hour meter
Automatically idles down/up with air demand
Unloader decreases engine load, lowers sound levels, reduces fuel use and engine wear
Safety Features Compressor thermal protection circuit
Automatic rapid blow-down valve on tank
200 psi pressure relief valve
Low engine oil pressure shutoff
Decibels (dB) @ 20 feet
(6.1 meters)
81 dB at high idle; 67 dB at low idle
Fuel Tank Capacity 1.6-Gallons (6.1 L)
Air Receiver Tank
(recommended for high duty cycle
applications in hot climates)
10-Gallon Air Receiver Tank w/ Mounting Feet
6-Gallon Air Receiver Wing Tank
Dual 6-Gallon Air Receiver Tanks (Base Mounted)
Warranty Two years on all major components; VMAC air ends are covered by VMAC’s Lifetime Warranty (Limited);
Honda engine is covered by Honda’s 3-Year Warranty.
This unit we have in stock now is setup with remote start & cold weather climate kit
- Free Shipping!
